ComFlor® 46

ComFlor® 46

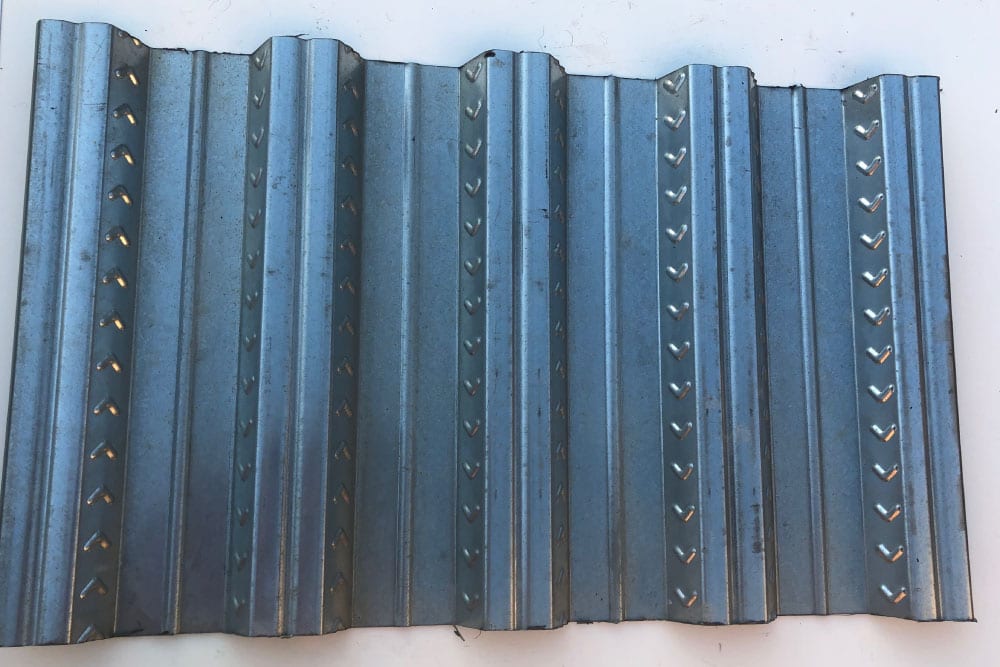

ComFlor® 46 is a simple trapezoidal composite deck with a strong and reliable shear bond performance.

The Profile is economic and nestable, reducing the transport costs.

The trapezoidal shape profile of the ComFlor® 46 reduces the volume of concrete used, with resultant savings in structural and foundation costs.

Next Day Delivery Available Throughout The UK

Key Benefits of ComFlor® 46 are:

  • Nestable
  • Fast laying
  • Economic
  • Efficient for export

For more information about our entire range of ComFlor® products, or to speak to our team for details, please call 01555 373335 directly  and we will be more than happy to assist you with your enquiry.

Topflight Steel Decking offer unrivaled service, experience and cost.

Get A Quote Today

Technical Specifications

Volume & Weight
Weight of concrete (kN/m2)
Slab depth
(mm)		Concrete
volume (m3/m2)		Normal weight concreteLightweight concrete
WetDryWetDry
960.077––1.431.35
1060.0872.042.001.611.53
1100.0912.132.091.691.60
1200.1012.372.321.881.78
1300.1112.602.552.061.95
1400.1212.842.782.252.13
1500.1313.083.012.432.31
1600.1413.313.242.622.48
1700.1513.553.472.812.66
1800.1613.783.702.992.84
1900.1714.023.933.183.01
2000.1814.254.163.373.19
2500.2315.435.324.304.07

Notes:

1. Deck and beam deflection (ie, ponding) is not included in the table.

2. Deck and mesh weight is not included in the weight of concrete figures.

3. British Standard density of concrete is taken as:

Normal weight (wet) 2400 kg/m3

Normal weight (dry) 2350 kg/m3

Lightweight (wet)     1900 kg/m3

Lightweight (dry)     1800 kg/m3

Section Properties
Nominal thickness (mm)Design thickness (mm)Cross section area (mm2/m)Profile weight (kN/m2)Height to neutral axis (mm)Moment of inertia
(cm4/m)		Ultimate moment capacity (kNm/m)
SaggingHoggingSaggingHogging
0.900.8611370.0920.3841.50–4.634.67
1.201.1615340.1320.4453.00–5.996.23

Notes:

Section properties in the above table conform to BS 5950.

Download the PDF

Why ComFlor® Range?

If you’re looking for high quality and sustainable flooring and decking solutions, the ComFlor® range is the number one choice. ComFlor®’s range is made in the UK and is therefore highly accessible to companies just like us which is great for reducing potential lead and delay times. It’s one of the reasons why we are able to provide unrivalled next day delivery. ComFlor® offer up to seven different profiles that enables effective and efficient design. Moreover, health and safety features are readily built in and all products are factory produced with the backing of robust quality management and the compliance to environmental standards.

Why ComFlor® Range?

The ComFlor® range is truly one of the best to consider if you’re looking for high-quality decking solutions. The range provides a whole host of sustainable floor solutions for all sectors and as they are made in the UK, they are readily available and accessible today. Moreover, health and safety features are readily built in and all profiles on offer provide quicker, safer installation whilst also being fully nestable for transportation. Colour coat pre-finished steel soffits offer significant extra protection and corrosion resistance. The ComFlor® range is specifically designed for rapid installation of flooring and to facilitate lower mass buildings with long clear span composite concrete floors.
